| Brand: | Silver Swallow | Blender Type: | Planetary Mixer |
| Material Type: | Solid-Liquid | Applicable materials: | Glue |
| Power Type: | Electric | Layout form: | Vertical |
| Mixing method: | Hydraulic lift control, motor drive | Amount of processing per time: | ≤10L |
| Application: | Chemicals | How to work: | Continuous operation |
| Drum Shape: | Drum type | Installation method: | Fixed |
| Motor Power: | 1.2kw/2.2kw/0.37kw | Production Capacity: | 10L/batch |
| Speed Range: | Rotation + Revolution + Dispersion | Barrel Capacity: | 15.6L |
| Model: | SXJB | Specifications: | SXJB-10L |
| Trademark: | YINYAN | Packaging: | As per customer request |
| Operation Box: | Button style | Paddles: | Special process processing |
| Device structure: | Vertical structure | Device Application: | Production of adhesive products |
| Device Name: | Dual Planetary Mixer | Planet Case Materials: | Stainless Steel |
| Stir structure: | Special Design | Lifting form: | Electric, pneumatic, hydraulic and other options |
| Device Material: | SUS304 | Material of electric control box: | Stainless Steel |
| Yield: | 100 |
Detailed introduction of "10L Adhesive Mixer, Stainless Steel Double Planetary Mixer"

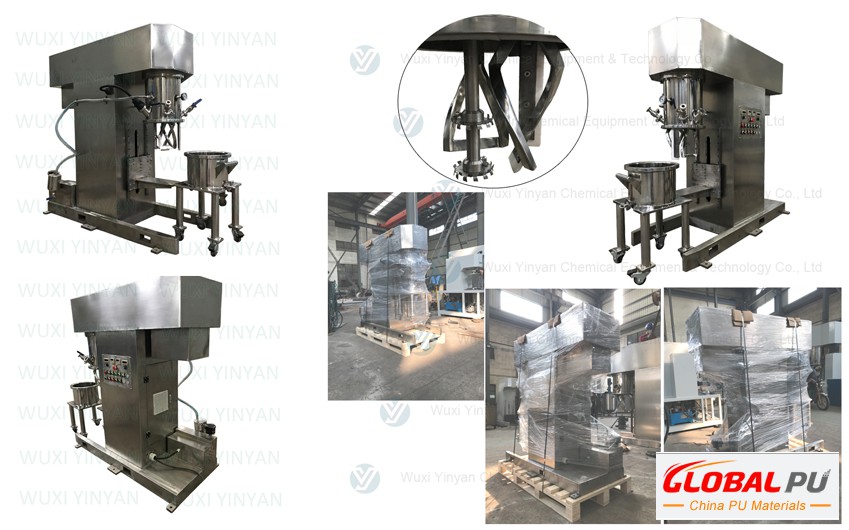

10L Adhesive Mixer, Stainless Steel Double Planetary MixerBasic Introduction
The 10L double planetary mixer is an experimental double planetary mixer of Wuxi Yinyan Chemical Co., Ltd. This type of equipment is a new type of mixing equipment specially developed for the needs of colleges and universities, scientific research units and factory laboratories. This experimental equipment is also suitable for products with relatively high viscosity, such as adhesives, silica gel, lithium battery slurry, etc. At the same time, the stirring structure can be designed with wall scraping and bottom scraping, so that there is no dead angle and no residue in the stirring process. 10L adhesive mixer, full-coated stainless steel double planetary mixer, small batch production in clean room, or factory laboratory or research experiment with high environmental requirements.
Lab Double Planetary Mixer Applicable materials:
Various pastes with material viscosity below 3,000,000cps and solid content below 90%; such as battery paste, solder paste, ceramic paste, silicone ink, sealant, structural adhesive, ointment, jam, etc. kinds of materials. Lab Double Planetary Mixer Applications:
Suitable for dispersing, stirring and mixing of materials in industries such as paint, putty, ink, adhesive, energy, electronic appliances, pharmaceuticals, cosmetics, and food. 10L Adhesive Mixer, Stainless Steel Double Planetary Mixer Characteristics
1. Low clearance - low clearance between paddle and paddle, paddle and barrel wall, paddle and barrel bottom, precise clearance between stirring paddles and stirring paddle and the inner wall of the stirring tank, so that the stirring tank has no dead angle and has a high The excellent kneading effect makes the materials quickly penetrate and knead each other in a short time;
2. Low noise--precision machining of parts, professional assembly, high degree of coordination, low wear degree, stable operation and low noise;
3. Zero leakage - dynamic and static double sealing, the planetary gearbox adopts a fully sealed structure, and the sealing performance is improved by 50% compared with the traditional seal; the vacuum degree can reach -0.098MPa, the static pressure is maintained for more than 24 hours, and the dynamic pressure maintenance performance is good. Ensure the stirring process;
4. High strength--according to different mixing processes (wet mixing, dry and wet mixing), after strict strength calculation, it is suitable for high viscosity, high solid content battery positive and negative slurry , adhesives and other products mixed reaction use;
5, high integration - pre-mixing, stirring, turnover, filtration links seamless quick-release docking, no contact with air. PLC automatic control, speed, temperature, lifting, vacuum system, can be integrated on a panel for control; Paddles, double straight frame agitators and other stirring blades, lifting bucket or lifting beam type lifting form to meet the production needs of different working conditions.
